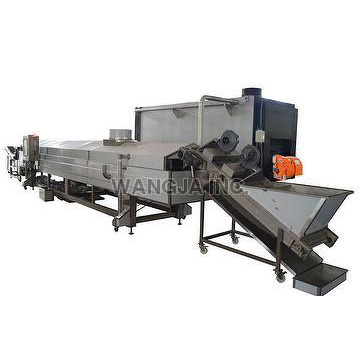

CORN NUTS CONTINUOUS FRYER

Model No .: WJF-801, WJF-805
Certification: CE
Made In: Taiwan

Categories: , Tags: , , , ,
Key Features

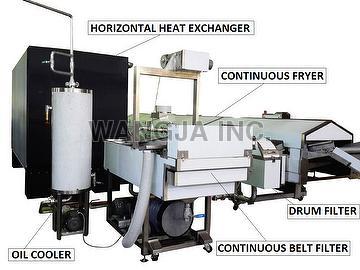

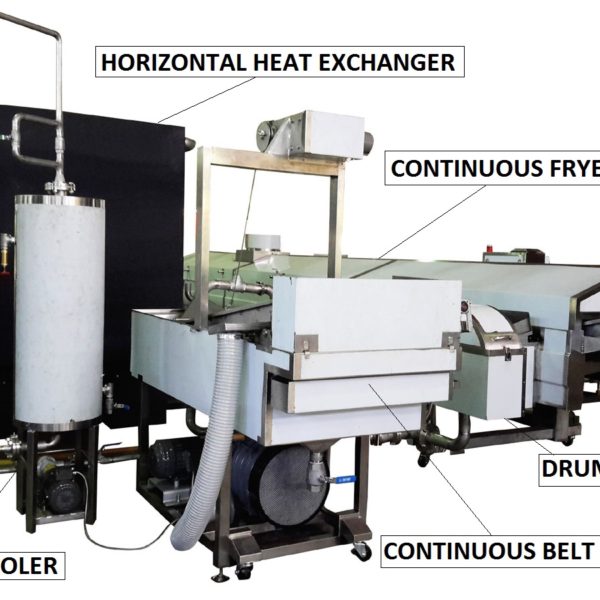

Model WJF-805 Automatic Corn Nuts Continuous Fryer system included Main Fryer Body, Heat Exchanger and Drum Coarse Oil Filtration.

Main Body Standard Equipped:

  • Single Stainless net conveyor
  • Frequency converter (Taiwan made)
  • Self-locking motorized screw jacks raise the hood
  • Drum Coarse Oil Filtration
  • Clean-in-place spray nozzles in the hood
  • Oil level control is maintained automatically.
  • PLC touch control panel
  • All stainless 304 # main body and piping (piping within the 3 meters, except transmitted parts not stainless steel)
  • Net conveyor spec. 1.6 * 1.6 * 6 * 12
  • ALLAN’s unique continuous fryer designs help you produce the products of the best quality.

Features:

  1. Continuous oil circulation through the fryer, filter and heat exchanger provides the precise control of temperature and quick adjustment while changing the amount of the products.
  2. Oil inlet maintains stable oil flow to clear the product in feeding area without creating back eddies or undercurrents.
  3. Fryer metering paddles and a submerge conveyor help to control cooking time for consistent and uniform products.
  4. Superior oil quality, Low oil volume and rapid oil circulation assure the freshness of the product with a long shelf life. Oil level is maintained automatically.
  5. Easy cleaning: Clean-in-place (CIP) spray nozzles in the hood and exhaust stack help clean all oil circulating areas. Circulating cleaning system circulates the cleaning water and Sodium bicarbonate following the same path as cooking oil, thoroughly cleans and sanitizes all areas.
  6. Self-locking motorized screw jacks raise the hood, paddles, and submerge conveyor,giving the complete access to the frying bed.
  7. PLC touch panel. Use water proof control box to protect electric components.
  8. AII motors are provided with overload protector for safety operation.
  9. Emergency STOP button on both sides for safety operation.
  10. Pressure switch to check frying oil pressure inside the piping.
Main Export Market

Europe ,Middle East ,North America ,Oceania ,South America, Africa ,Asia
